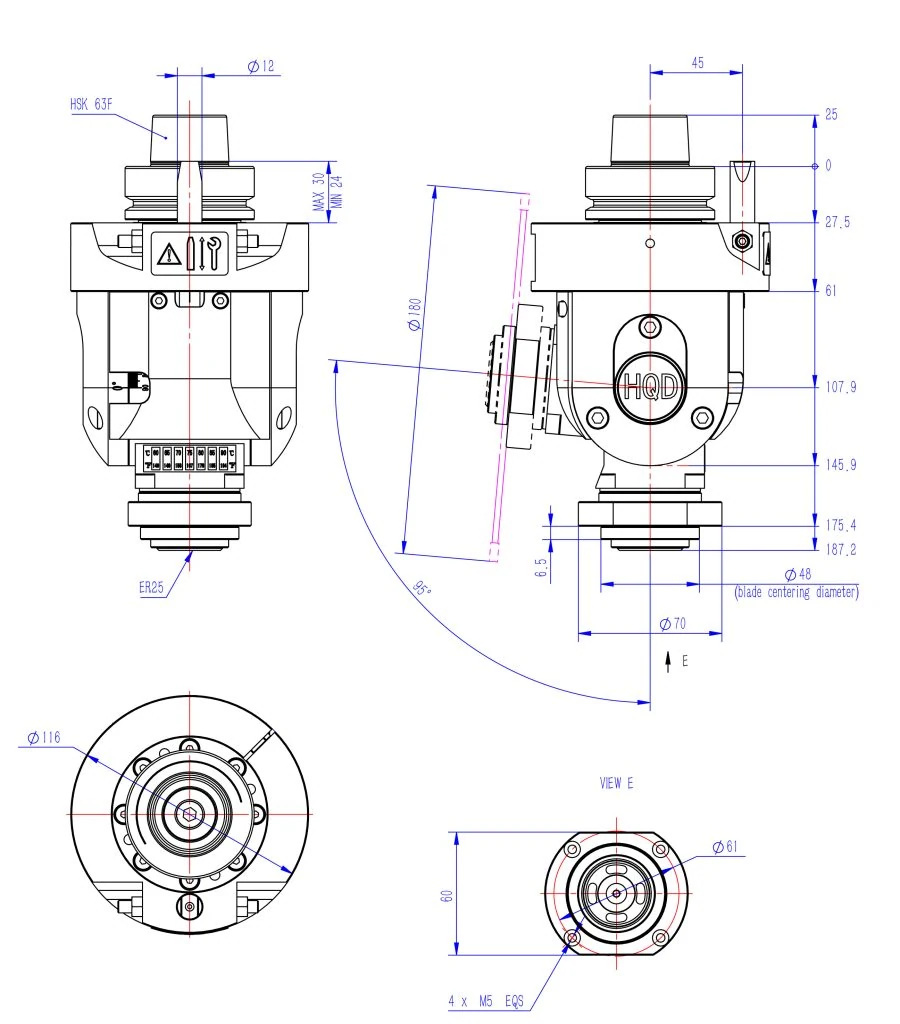

Product image / technical drawing
HQD ADJUSTABLE AGGREGATES
AD-HSK63F-ER25
Adjustable angle head
Orient an ER25 tool to the required machining angle with a compact HSK63F aggregate. Drilling and saw configurations support angled access without rebuilding the machine.
- Adjustable output orientation
- ER25 tool interface
- Grease-lubricated transmission
MODEL REF. AD-HSK63F-ER25 · HSK63F / ER25
A CLOSER LOOK
A new direction
for your machining.
The AD-HSK63F-ER25 couples to a HSK63F spindle and provides an adjustable output axis for access to inclined faces and side features.
Set the required angle with the machine stopped, then secure the locking components before operation. Match the tool, speed and clearance to the intended drilling or sawing configuration.
THE DETAILS THAT MATTER
Technical data.
| Electrospindle rotation speed | Drilling: 12,000 rpm · Sawing: 7,000 rpm (maximum) |
|---|---|
| Tool rotation speed | Drilling: 12,000 rpm · Sawing: 7,000 rpm (maximum) |
| Speed ratio | 1:1 |
| Electrospindle coupling | HSK63F |
| Tool shank diameter | Ø1-Ø16mm |
| Max bit diameter(*) | Ø16mm |
| Blade diameter(°) | Ø180mm(Max value) |
| Lubrication | Grease |
Specification source & model notes
Product facts are based on the linked HQD listing. Confirm the final tooling configuration when requesting a quotation.
The live product title identifies an adjustable HSK63F head; older indexed versions of this URL described a different dual-output model. The live title and specification table were used.
