HQD SAWING AGGREGATES
HSK63F-ER25×2-S
Dual-output head with saw mount
Combine ER25 tooling and a saw-mount option in a HSK63F aggregate. Select the active machining configuration to suit drilling, milling or cutting access.
- ER25 tooling with saw-mount option
- HSK63F spindle interface
- Separate drilling and sawing speed limits
MODEL REF. HSK63F-ER25×2-S · HSK63F / ER25
A CLOSER LOOK
A new direction
for your machining.
The HSK63F-ER25×2-S connects to a HSK63F spindle and provides an ER25 tool interface with a saw-blade mounting option.
Use the speed limits assigned to the installed tool configuration. Confirm the mounting arrangement, machine clearance and permitted operating sequence with the application team.
THE DETAILS THAT MATTER
Technical data.
| Input maximum speed | 8400rpm (The maximum speed when using the saw blade is 4200 rpm) |
|---|---|
| Output maximum speed | 12000rpm (The maximum speed when using the saw blade is 6000 rpm) |
| Transmission ratio | 1：1.43 |
| Tool Holder | HSK63F |
| Output shaft | ER25，One side can be fitted with a saw blade |
| Lubricating method | Grease lubrication |
Specification source & model notes
Product facts are based on the linked HQD listing. Confirm the final tooling configuration when requesting a quotation.
View HQD source listing ↗PLAN THE INSTALLATION

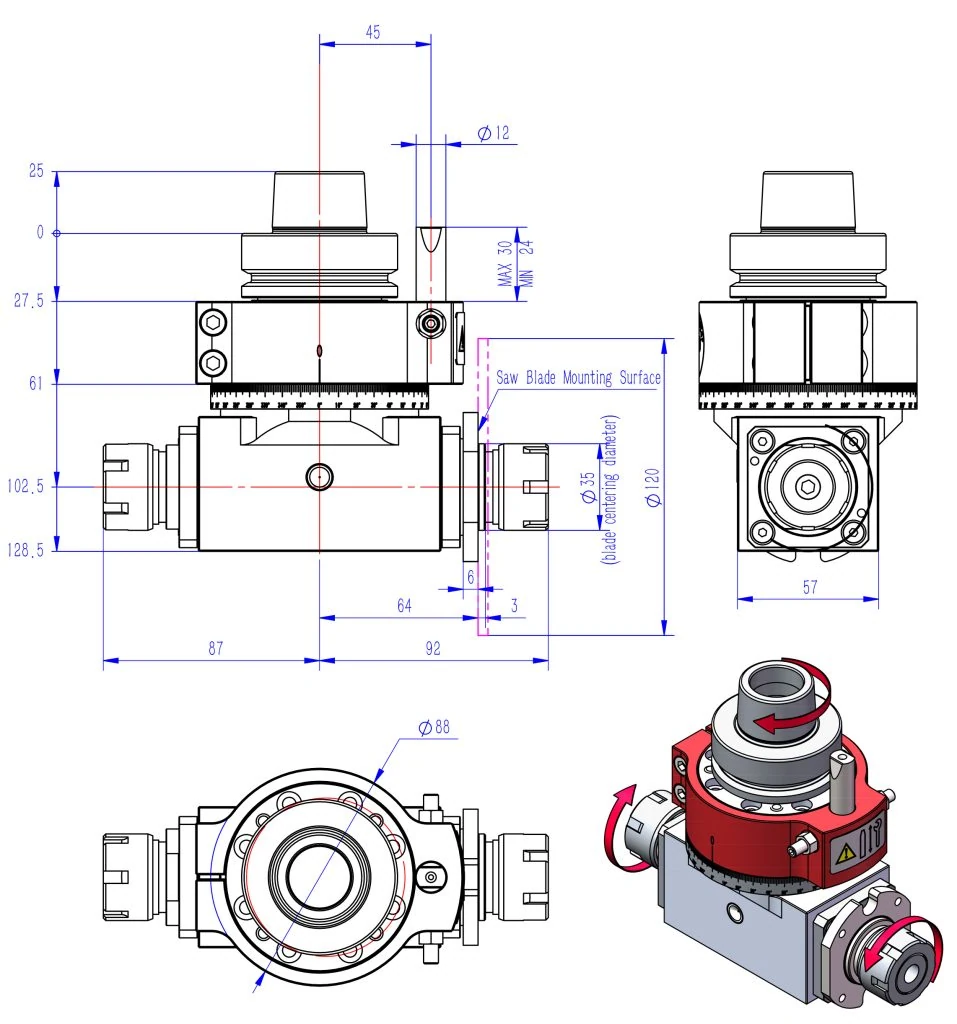

Dimensions & drawings.
Check the connection, output clearance and installation envelope for your machine.
