HQD SAWING AGGREGATES
ISO30-ER25×2-S
Dual-output head with saw mount
Combine ER25 tooling and a saw-mount option in a ISO30 aggregate. Select the active machining configuration to suit drilling, milling or cutting access.
- ER25 tooling with saw-mount option
- ISO30 spindle interface
- Separate drilling and sawing speed limits
MODEL REF. ISO30-ER25×2-S · ISO30 / ER25
A CLOSER LOOK
A new direction
for your machining.
The ISO30-ER25×2-S connects to a ISO30 spindle and provides an ER25 tool interface with a saw-blade mounting option.
Use the speed limits assigned to the installed tool configuration. Confirm the mounting arrangement, machine clearance and permitted operating sequence with the application team.
THE DETAILS THAT MATTER
Technical data.
| Input interface | ISO30 |
|---|---|
| Output configuration | ER25 and single-side saw mount |
| Maximum output speed | 12,000 rpm |
| Transmission ratio | 1:1.43 |
| Taper runout | <0.005 mm |
| Maximum saw speed stated in source FAQ | 4,200 rpm |
| Lubrication | Grease |
Specification source & model notes
Product facts are based on the linked HQD listing. Confirm the final tooling configuration when requesting a quotation.
The source FAQ lists a 4,200 rpm saw limit. Verify the input/output limit and approved saw configuration with HQD before ordering.
View HQD source listing ↗PLAN THE INSTALLATION

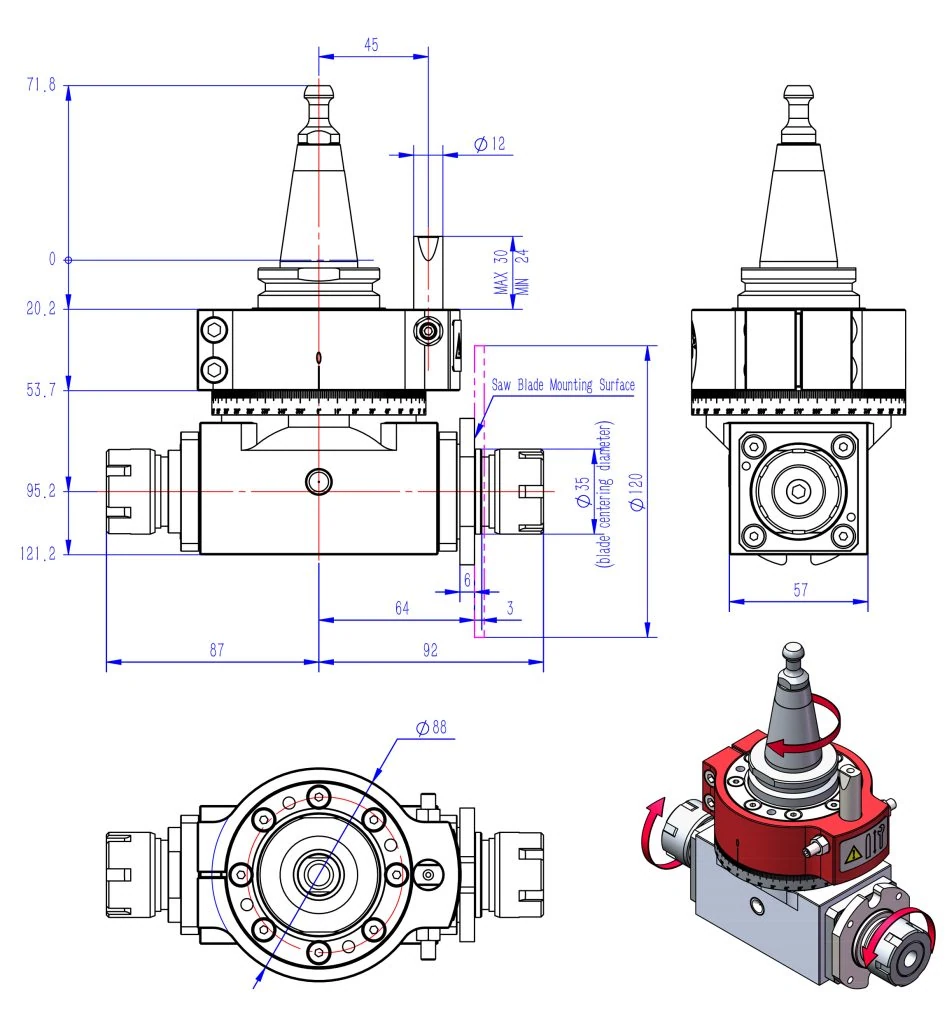

Dimensions & drawings.
