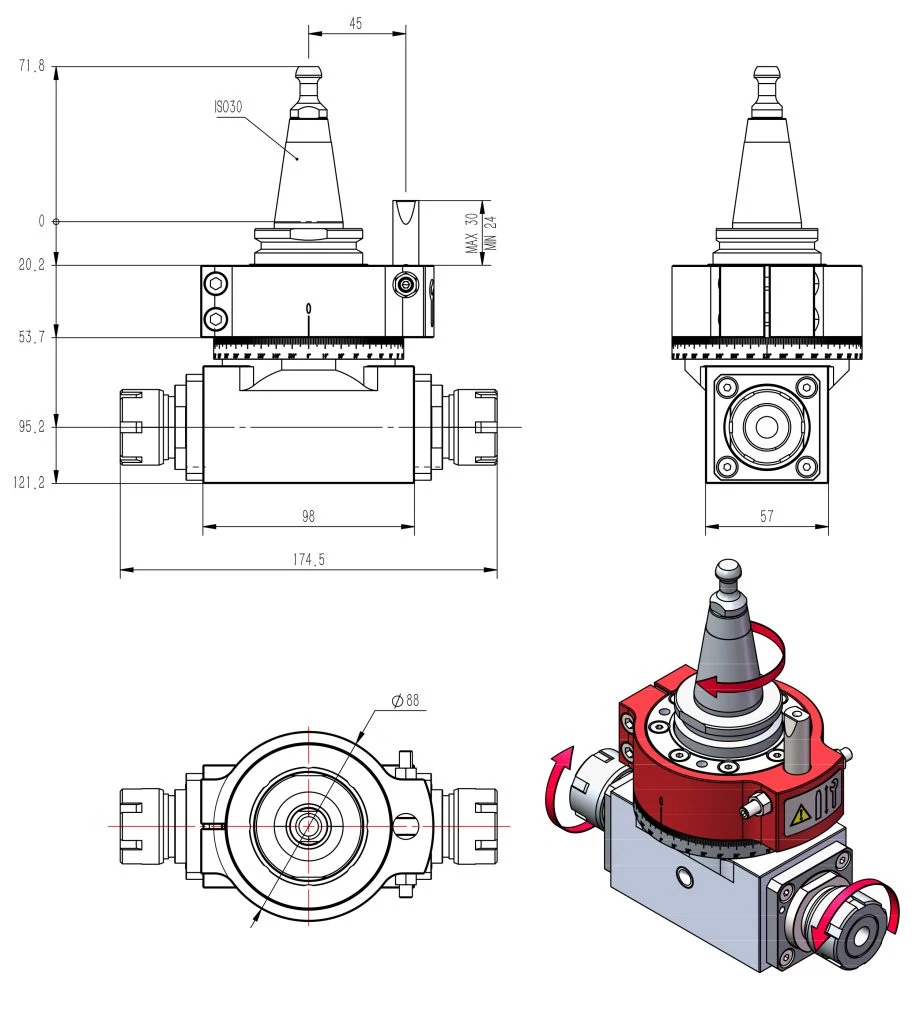

Product image / technical drawing
HQD DUAL OUTPUT AGGREGATES
ISO30-ER25×2
Dual-output angle head
Two ER25 output positions extend the working envelope of a ISO30 spindle. A 1:1.43 transmission supports up to 12,000 rpm at the output.
- Two ER25 output positions
- Speed-increasing gear transmission
- Compact grease-lubricated body
MODEL REF. ISO30-ER25×2 · ISO30 / ER25
A CLOSER LOOK
A new direction
for your machining.
The ISO30-ER25×2 offers two tool positions from one ISO30 input, reducing the need to reposition the workpiece between accessible faces.
The stated input speed is 8,400 rpm and the maximum output is 12,000 rpm. The head uses grease lubrication and a compact housing for installation where clearance is limited.
THE DETAILS THAT MATTER
Technical data.
| Maximum input speed | 8400rpm |
|---|---|
| Maximum output speed | 12000rpm |
| Transmission ratio | 1：1.43 |
| Input terminal | ISO30 |
| Output terminal | ER25 |
| Luburication | Grease |
Specification source & model notes
Product facts are based on the linked HQD listing. Confirm the final tooling configuration when requesting a quotation.
View HQD source listing ↗PLAN THE INSTALLATION
Dimensions & drawings.
Check the connection, output clearance and installation envelope for your machine.
