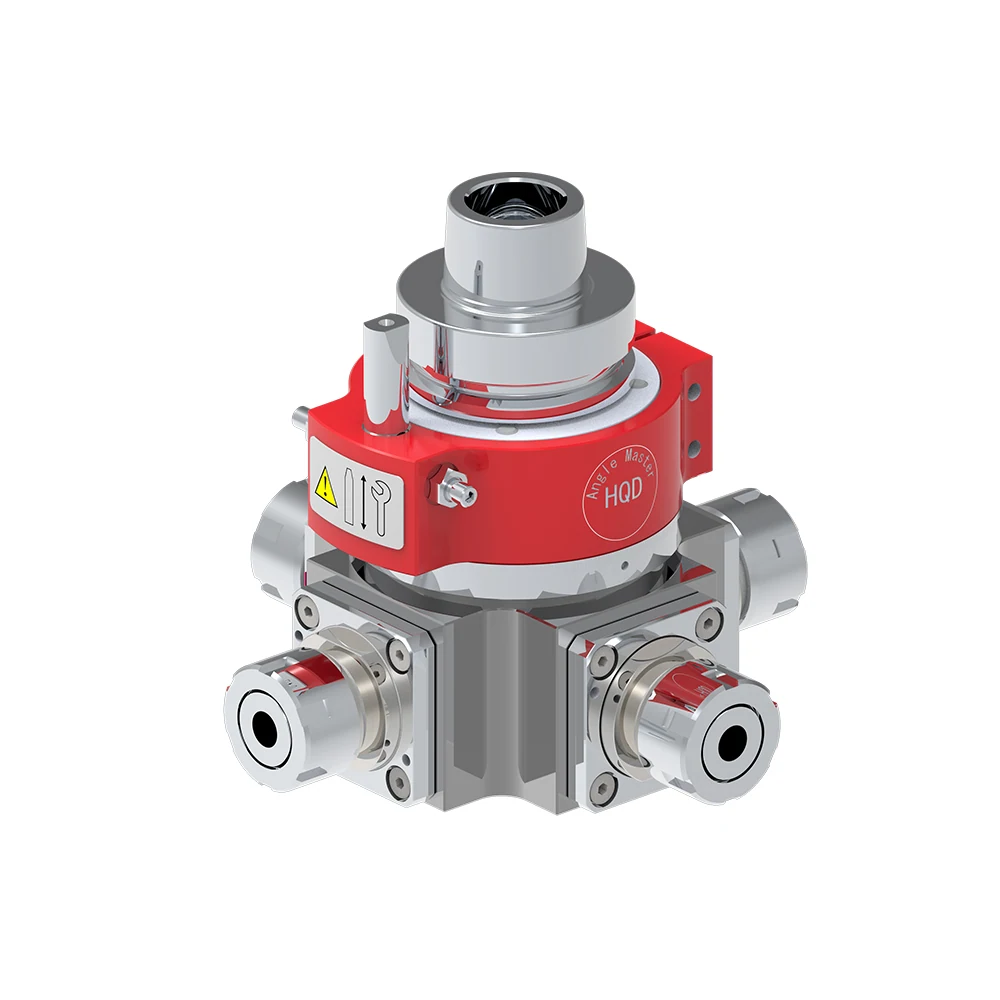

HSK63F-ER25×4

Four-output angle head

Four ER25 outputs combine multiple tool positions in one HSK63F aggregate. The speed-increasing transmission reaches a stated 12,000 rpm output from 8,400 rpm input.

Four ER25 output positions
8,400 rpm maximum input
12,000 rpm maximum output

ENQUIRE ABOUT THIS MODEL ↗

MODEL REF. HSK63F-ER25×4 · HSK63F / ER25

A CLOSER LOOK

A new direction
for your machining.

The HSK63F-ER25×4 brings four ER25 tool positions together in a compact HSK63F head for multi-face work.

Its shared input drives the output shafts through a 1:1.43 transmission. A compact body and grease lubrication simplify integration and routine maintenance.

Drilling ↗Milling ↗
