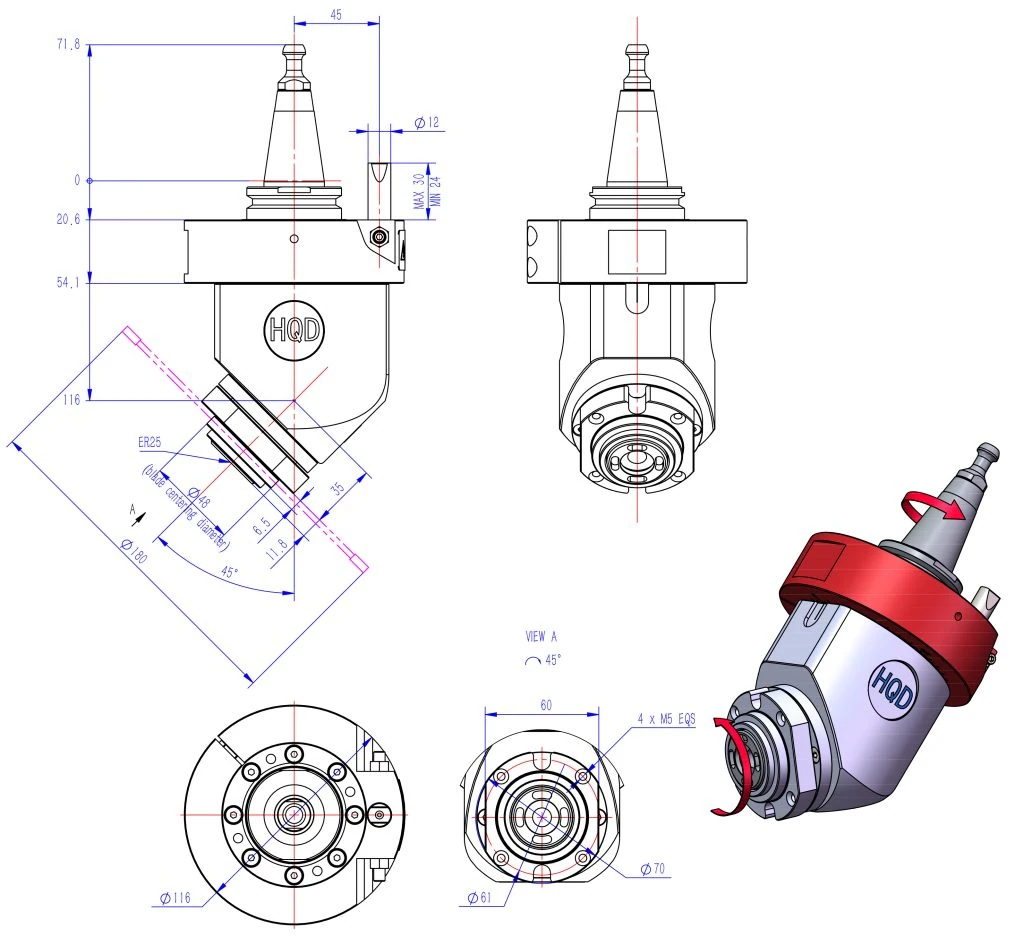

Product image / technical drawing
HQD FIXED ANGLE AGGREGATES
ISO30-ER25-S-45°
Fixed 45° angle head
A fixed 45° output brings angled drilling and sawing to an ISO30 spindle. The ER25 interface and saw mount cover complementary machining tasks.
- Fixed 45° machining orientation
- ER25 and saw mounting options
- 1:1 transmission ratio
MODEL REF. ISO30-ER25-S-45° · ISO30 / ER25
A CLOSER LOOK
A new direction
for your machining.
A dedicated 45° geometry provides consistent access to inclined features without resetting the angle between parts.
The published table specifies a 1:1 ratio, ER25 tooling, a maximum Ø16 mm bit and a maximum Ø180 mm saw blade. Drilling and sawing have different speed limits.
THE DETAILS THAT MATTER
Technical data.
| Electrospindle rotation speed | Drilling: 12,000 rpm · Sawing: 7,000 rpm (maximum) |
|---|---|
| Tool rotation speed | Drilling: 12,000 rpm · Sawing: 7,000 rpm (maximum) |
| Speed ratio | 1:1 |
| Electrospindle coupling | ISO30 |
| Tool shank diameter | Ø1-Ø16mm |
| Max bit diameter(*) | Ø16mm |
| Blade diameter(°) | Ø180mm(Max value) |
| Lubrication | Grease |
Specification source & model notes
Product facts are based on the linked HQD listing. Confirm the final tooling configuration when requesting a quotation.
