HQD FOUR OUTPUT AGGREGATES
ISO30-ER25×4
Four-output angle head
Four ER25 outputs combine multiple tool positions in one ISO30 aggregate. The speed-increasing transmission reaches a stated 12,000 rpm output from 8,400 rpm input.
- Four ER25 output positions
- 8,400 rpm maximum input
- 12,000 rpm maximum output
MODEL REF. ISO30-ER25×4 · ISO30 / ER25
A CLOSER LOOK
A new direction
for your machining.
The ISO30-ER25×4 brings four ER25 tool positions together in a compact ISO30 head for multi-face work.
Its shared input drives the output shafts through a 1:1.43 transmission. A compact body and grease lubrication simplify integration and routine maintenance.
THE DETAILS THAT MATTER
Technical data.
| Maximum input speed | 8400rpm |
|---|---|
| Maximum output speed | 12000rpm |
| Transmission ratio | 1：1.43 |
| Input terminal | ISO30 |
| Output terminal | ER25 |
| Luburication | Grease |
Specification source & model notes
Product facts are based on the linked HQD listing. Confirm the final tooling configuration when requesting a quotation.
View HQD source listing ↗PLAN THE INSTALLATION

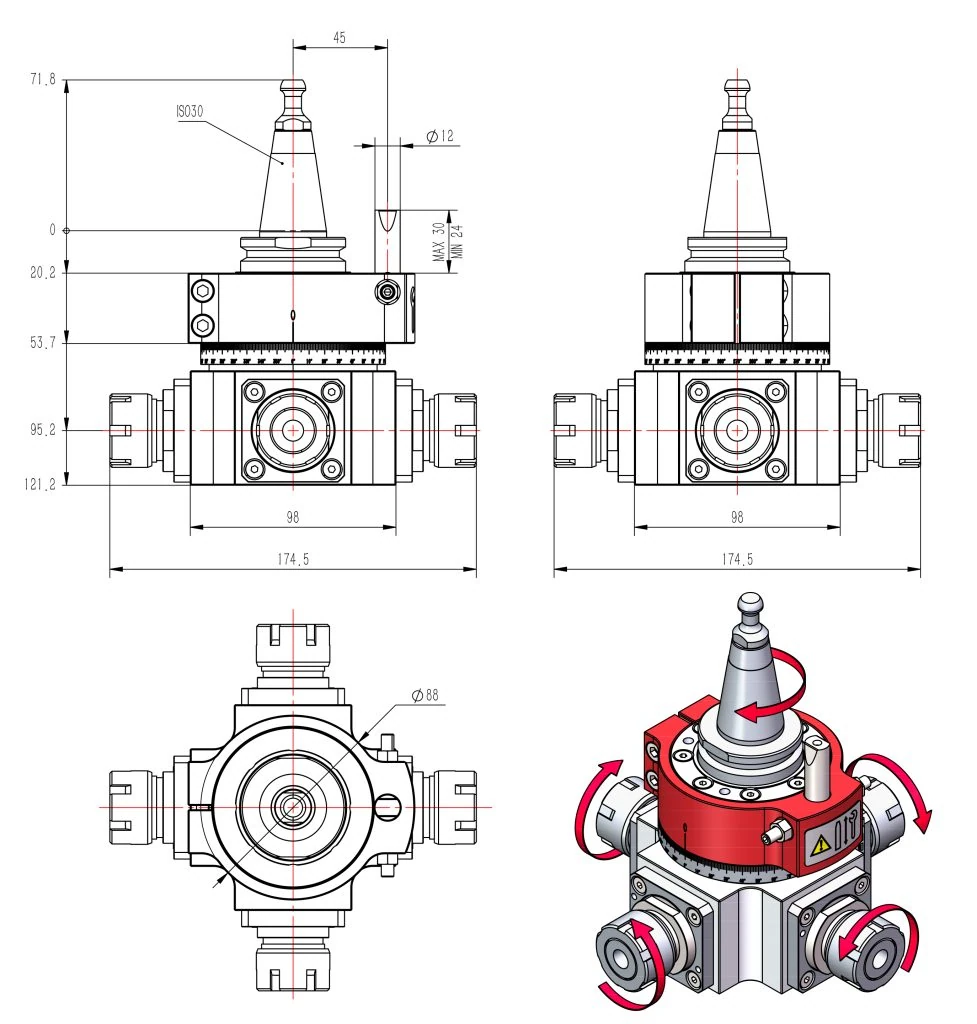

Dimensions & drawings.
